While Producing agricultural stretch films presents several specific slitting challenges, and due to film additives and material properties. When using tungsten carbide (WC) blades, the key differences lie in their exceptional hardness, wear resistance, and heat management, which directly address these production issues.
Challenges in Slitting Agricultural Stretch Films
Agricultural stretch film (often used for bale wrapping) is typically a multi-layer polyethylene film with high elasticity. The slitting process presents a number of specific challenges:
| Challenges | Description | Details |
| Material Properties | High Elasticity and Stretch | Films stretch significantly under tension; this can lead to fluttering, elongation at the blade edge, and distorted slit edges. |
| Soft, Low-Density Surface | The soft polyethylene surface tends to gum on the blade, especially if the blade is not sufficiently sharp or if heat builds up. | |
| Edge Quality Challenges | Non-Clean Cut Edges | Poor blade sharpness or incorrect blade type results in fuzzy edges, tenting, or delamination of the film layers. |
| Static and Dust | Stretch films generate electrostatic charge during unwinding; static causes the film to cling, making consistent slit tension difficult. | |
| Slitting Speed and Thermal Issues | Heat Generation | At high speeds, friction generates heat. This can soften the film at the cutting interface, causing melt-like ragged edges. |
| Blade Wear from Abrasion | The abrasive fillers often present in agricultural films accelerate blade wear. | |
| Tension Control | Improper Tension | Too much tension causes stretching and distortion; too little tension leads to flutter and inaccurate cut. |
| Multi-Layer and Thickness Variation | Films can vary in thickness and composition across the web width, making blade setup and consistency harder to maintain. | |
Blade Types Used in Slitting Stretch Films
Common blades for slitting polymer films include:
Carbon Steel Blades
High-Speed Steel (HSS) Blades
Ceramic Blades
Tungsten Carbide Blades
Each has different properties and performance characteristics.
Tungsten Carbide Blades — Technical Differences
Tungsten carbide blades differ markedly from steel variants like HSS or carbon steel, which are common baselines in slitting. Here's a comparative overview:
| Property | Carbon Steel | HSS | Ceramic | Tungsten Carbide |
|---|---|---|---|---|
| Hardness | Low | Medium | Very High | Very High |
| Wear Resistance | Low | Medium | High | Highest |
| Toughness | High | High | Low (brittle) | Moderate-High |
| Heat Resistance | Low | Medium | High | High |
| Suitable for High Speed | Limited | Good | Moderate | Excellent |
Advantages of Tungsten Carbide Blades for Stretch Film Slitting
Superior Wear Resistance:
Resists abrasive wear from filler additives and the inherent abrasion of plastic films.Stays sharp much longer than carbon or HSS blades, reducing frequency of blade changes.
Better Edge Quality:
Provides cleaner, straighter, non-frayed edges.Reduces delamination and edge snagging in stretch film.
High Thermal Stability:
Withstands higher slitting speeds without heat-induced softening of the film at the cut line.Reduces sticking and gummy buildup on the blade edge.
Longer Life and Lower Downtime:
Significant reduction in downtime and labor cost due to fewer blade changes.Better performance at high-volume production.
Consistent Performance:
More consistent slitting quality across extended runs.Especially beneficial for wide web agricultural films.
Considerations When Using Tungsten Carbide Blades
Initial Cost vs. Lifecycle Cost:
Higher initial cost than carbon or HSS blades.Lower total cost of ownership due to longevity and reduced downtime.
Blade Geometry:
Blade edge geometry (e.g., bevel angle, lip angle) must be optimized for polyethylene films.Correct geometry enhances cut quality and extends blade life.
Machine Configuration:
Slitter shafts, bearings, and web guides should accommodate the higher precision of carbide blades. Tension control and unwind/rewind systems should be tuned to reduce film stretch during slitting.
Blade Handling:
Tungsten carbide is harder but more brittle than steel; improper handling can cause chipping.
Huaxin provide industrial Blades solutions for agricultural stretch films experts in the world, from making agricultural film, coated film, stretch film, cling film, greenhouse film etc., to stretch film rewinding,wrapping, to deliver a high performance on slitting system, Huaxin focuses on tungsten carbide blades slitting solution, pls contact us for your excellent system.
About Huaxin:Tungsten Carbide Cemented Slitting Knives Manufacturer
CHENGDU HUAXIN CEMENTED CARBIDE CO.,LTD are a professional supplier and manufacturer of tungsten carbide products, such as carbide insert knives for woodworking,carbide circular knives for tobacco&cigarette filter rods slitting,round knives for corugatted cardboard slitting ,three hole razor blades/slotted blades for packaging ,tape,thin film cutting,fiber cutter blades for textile industry etc.
With over 25 years development, our products have been exported to U. S. A, Russia, South America,India,Turkey,Pakistan,Australia,Southeast Asia etc. With excellent quality and competitive prices, Our hard working attitude and responsiveness are approved by our customers. And we would like to establish new business relationships with new customers.
Contact us today and you will enjoy benefits of good quality and services from our products!
The high performance tungsten carbide industrial blades products
Custom Service
Huaxin Cemented Carbide manufactures custom tungsten carbide blades, altered standard and standard blanks and preforms, starting from powder through finished ground blanks. Our comprehensive selection of grades and our manufacturing process consistently delivers high-performance, reliable near-net shaped tools that address specialized customer application challenges across diverse industries.
Tailored Solutions for Every Industry
custom-engineered blades
Leading manufacturer of industrial blades
Follow us: to get Huaxin's industrial blades products releases
Customer common questions and Huaxin answers
That depends on the quantity, generally 5-14days. As an industrial blades manufacturer, Huaxin Cement Carbide plans the production by orders and customers' requests.
Usually 3-6 weeks, if you request customized machine knives or industrial blades that are not in stock at the time of purchasing. Find Sollex Purchase & Delivery Conditions here.
if you request customized machine knives or industrial blades that are not in stock at the time of purchasing. Find Sollex Purchase & Delivery Conditions here.
Usually T/T, Western Union...deposits firstm, All first orders from new customers are prepaid. Further orders can be paid by invoice...contact us to know more

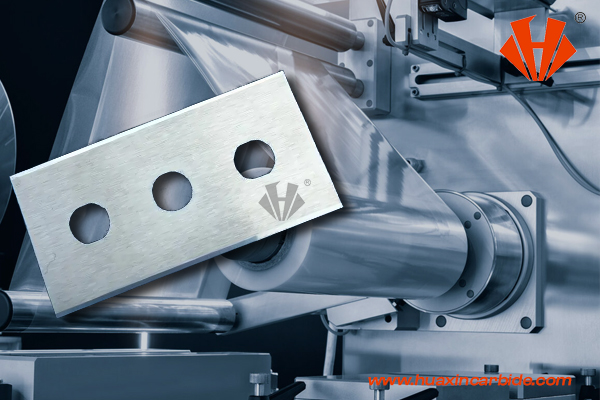

Yes, contact us, Industrial knives are available in a variety of forms, including top dished, bottom circular knives, serrated / toothed knives, circular perforating knives, straight knives, guillotine knives, pointed tip knives, rectangular razor blades, and trapezoidal blades.
