A corrugator running at full line speed leaves almost no margin for a dull blade. Long before anyone pulls a knife for inspection, the signs show up on the board itself — edges turning rough, widths drifting by fractions of a millimeter, a fine layer of dust settling on machine frames that were clean that morning. This is usually the point where plants running higher speeds start replacing steel slitter blades with solid tungsten carbide ones.

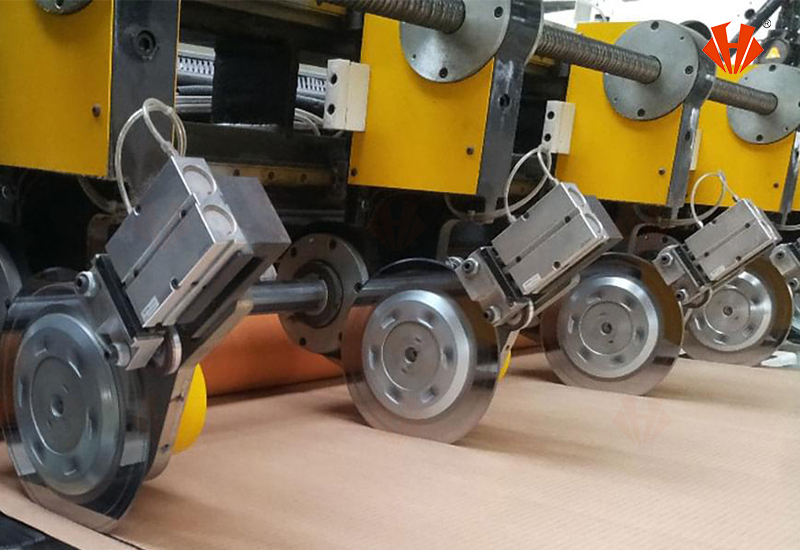

Where the Slitter Scorer Sits in the Line
The slitter scorer sits near the tail end of the corrugator, cutting wide continuous sheets into finished widths and scoring them for the folding that follows. Because it’s one of the last stations before the board takes its final shape, whatever happens here stays visible in the finished box — clean edges or ragged ones, consistent widths or slight drift, a quiet uninterrupted run or one broken every few hours for a blade change. Higher line speeds only raise the stakes: precision has to hold steady, dust generation has to stay low, and the knife itself has to survive long production runs without losing its edge.
How the Major Corrugator Brands Approach Slitting
Machine builders differ in frame design, drive systems, and control software, but almost all of them converge on the same slitting principle once speed becomes a factor: shear-cut slitting with a solid carbide circular knife.
| Corrugator Brand | Country | Slitting Method | Typical Slitter Knife |
|---|---|---|---|
| MHI (Mitsubishi Heavy Industries) | Japan | Shear Cut | Solid Tungsten Carbide Thin Blade |
| ISOWA | Japan | Shear Cut | Solid Carbide Circular Slitter Knife |
| BHS Corrugated | Germany | Shear Cut | Tungsten Carbide Slitter Knife |
| Fosber | Italy | Shear Cut | Carbide Thin Slitting Blade |
| Hsieh Hsu | Taiwan | Shear Cut | Solid Carbide Slitter Blade |
| TCY | Taiwan | Shear Cut | Tungsten Carbide Circular Knife |
| MarquipWardUnited | USA | Shear Cut | Carbide Circular Slitting Blade |
| Agnati | Italy | Shear Cut | Solid Tungsten Carbide Knife |
Machine structures vary by manufacturer; the working principle at the knife station does not.
Whatever brand is on the machine’s nameplate, the working pair is the same — a precision-ground carbide blade running against a lower knife or anvil, engineered to shear cleanly through linerboard and fluting without crushing the edge or scattering dust through the machine.
Why Solid Carbide Wins Out Over Steel at Speed
Steel blades still hold up fine in slower or lower-volume operations. But once line speed climbs, the economics shift, and the difference shows up in five places on the production floor.
Wear Resistance
Tungsten carbide is substantially harder than high-speed steel, so the cutting edge holds its geometry through continuous runs instead of rounding off within a shift.
Service Life
A blade that lasts longer between changes means fewer line stops, less operator time spent on swaps, and lower maintenance spend over a year of production.
Cutting Precision
Carbide’s rigidity holds tight blade geometry under load, which shows up as smooth, burr-free edges and board widths that stay within tolerance run after run.
Lower Dust Generation
A sharper, more stable edge slices through fiber cleanly instead of tearing it, which keeps dust off the machine frame and out of the surrounding air.
Production Stability
Fewer quality swings and fewer unplanned stops translate directly into higher overall equipment efficiency across a shift.
What Actually Determines How Long a Blade Lasts
Not every carbide blade performs the same, even when the spec sheet says “tungsten carbide.” Service life gets decided well before the blade ever touches a sheet of board, across four stages of production.
Using 100% virgin tungsten carbide powder, rather than reclaimed or blended material, keeps hardness and toughness consistent from batch to batch.
Fine-grain carbide grades strike the balance that high-speed slitting needs most: edge retention without sacrificing impact resistance.
Outer diameter, inner diameter, thickness, flatness, and edge geometry all have to land within tight tolerance, or the knife runs with vibration built in from day one.
Every stage, from powder preparation through final inspection, feeds directly into how consistently the blade performs once it’s mounted.
The balance between hardness and toughness in the grain structure — not raw hardness on its own — is what decides how a blade actually holds up over a full production run.
Huaxin’s Approach to Corrugated Slitter Knives
Huaxin manufactures solid tungsten carbide thin blades for corrugated slitter scorers, ground from premium sub-micron carbide on advanced CNC equipment under ISO-managed quality procedures. Standard and customized dimensions are available from customer drawings or samples.
Virgin Carbide, Sub-Micron Grade
100% virgin tungsten carbide in sub-micron grades built for extended edge retention under continuous production.
Hardness & Toughness Balance
Grades selected for wear resistance without giving up impact toughness at high line speed.
Clean, Burr-Free Cutting
Precision edge geometry that shears cleanly through board instead of tearing fiber.
Dimensional Accuracy & Balance
Stable dimensions and rotational balance that keep runs smooth and reduce vibration-related wear.
Long Service Life
Fewer blade changes over a production year, with performance that holds steady from the first cut to the last.
OEM Compatibility
Manufactured to fit major corrugator brands as a drop-in replacement, without machine modification.
Available for Leading Corrugator Systems
Huaxin manufactures carbide slitter knives compatible with many internationally recognized corrugated machinery manufacturers.
Mitsubishi Heavy Industries
Beyond the Blade Itself
Slitter knives rarely sit in isolation from the rest of a plant’s carbide needs, which is why Huaxin also supplies diamond grinding wheels for sharpening, customized carbide grades for non-standard applications, OEM and ODM manufacturing, precision-ground replacement blades, and direct technical support for blade selection when a production line is being tuned for a new board grade or a higher target speed.
Looking for Slitter Knives Built for Your Line?
Huaxin supplies high-performance carbide slitter knives trusted by converters worldwide for clean cutting, long service life, and consistent production quality — standard or custom-engineered to your drawings.
