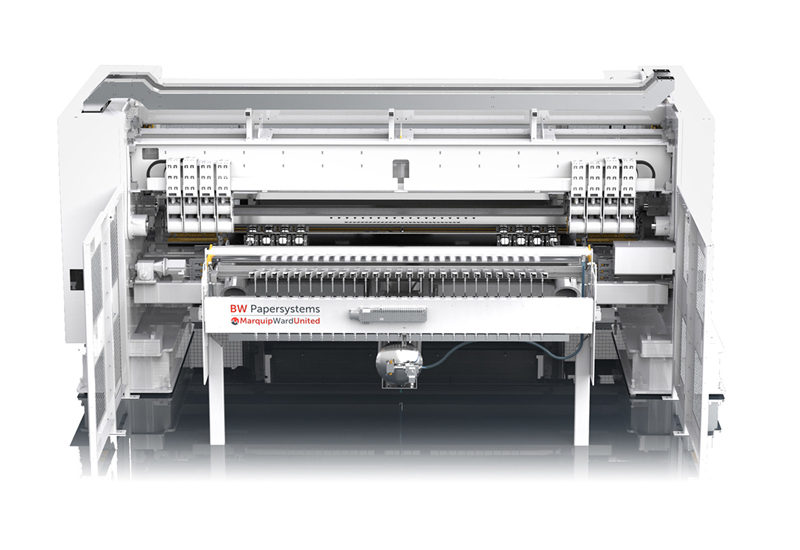

1. What is a Slitter Scorer?
In the corrugated packaging industry, a Slitter Scorer is a critical converting machine used in the dry end of a corrugator line. It performs two essential operations:
- Slitting: cutting corrugated board longitudinally into required widths
- Scoring: creating crease lines for folding
This machine transforms large corrugated sheets into precisely sized and pre-creased blanks ready for box forming.
Typically positioned between the double facer and cut-off machine, the slitter scorer ensures that every board meets exact dimensional and structural requirements for downstream processes.
2. Main Functions of a Slitter Scorer
2.1 Precision Slitting

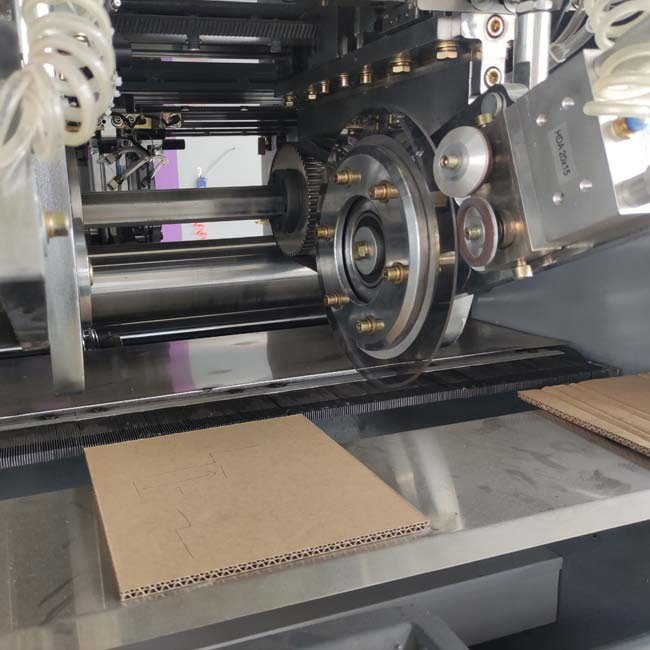

The slitting unit uses multiple circular knives to cut the board into narrower strips or remove trim edges. This ensures:
- Accurate width control
- Smooth, burr-free edges
- Consistent product dimensions
High-speed lines can reach cutting speeds of hundreds of meters per minute, requiring exceptional blade stability and sharpness.
2.2 Scoring (Creasing)
The scoring system creates fold lines using scoring wheels or rollers. These lines:
- Allow cartons to fold cleanly
- Prevent flute cracking
- Maintain structural integrity
Without proper scoring, cartons may deform or break during folding.
2.3 Trimming & Waste Reduction
Slitter scorers also remove excess material and optimize board usage, helping manufacturers:
- Reduce raw material waste
- Improve production efficiency
- Enable fast order changes
2.4 High-Speed Automation & Flexibility
Modern machines feature:
- Automatic knife positioning
- Real-time adjustment
- Continuous order change capability
These features significantly improve productivity and reduce downtime.

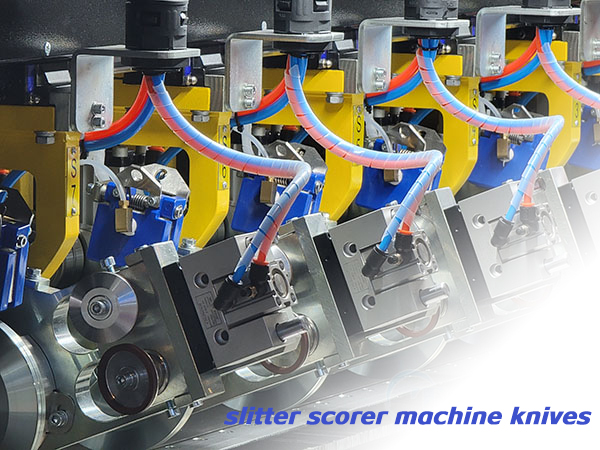

3. Requirements for Slitter Scorer Knives
The performance of a slitter scorer heavily depends on the quality of its blades. Given the high-speed and high-precision environment, knives must meet strict requirements:
3.1 Extreme Sharpness
Thin blades must deliver clean cuts without crushing corrugated flutes, and smooth edges without burrs.
3.2 Wear Resistance
Corrugated board contains adhesives and recycled fibers. Blades must have high hardness, long service life, and resistance to edge wear.
3.3 Dimensional Precision
Thickness and flatness must be tightly controlled. Parallelism ensures consistent slitting width.
3.4 Thermal Stability
High-speed operation generates heat. Ideal blades maintain hardness at elevated temperatures and support continuous production.
3.5 Self-Sharpening Compatibility
Blades must be suitable for repeated regrinding and maintain edge integrity over multiple cycles.
4. Why Tungsten Carbide is the Ideal Material
Compared with conventional tool steels, tungsten carbide offers superior performance:
- ✓Higher hardness (HRA 90+)
- ✓Outstanding wear resistance
- ✓Longer lifespan (3–10× vs HSS)
- ✓Consistent cutting quality over time
This is why tungsten carbide has become the preferred material for high-performance slitter scorer knives.
5. HuaXin Cemented Carbide: High-Performance Slitting Solutions
As a professional manufacturer, HuaXin Cemented Carbide specializes in tungsten carbide slitting knives for corrugated industry applications.
Key Advantages of HuaXin Carbide Knives:
Ultra-Fine Grain Carbide
- Provides superior edge sharpness
- Enhances wear resistance
Precision Grinding Technology
- Tight tolerance control
- Ensures stable slitting accuracy
Extended Tool Life
- Reduces blade replacement frequency
- Lowers overall operating costs
Excellent Cutting Performance
- Smooth, burr-free edges
- Protects corrugated flute structure
Customization Capability
- Compatible with major slitter scorer machines
- Available in different diameters and thicknesses
The slitter scorer is a core machine in corrugated box production, responsible for both cutting and creasing operations that directly impact product quality.
Its efficiency and output quality rely heavily on high-performance cutting tools, making blade material selection critical.
By choosing HuaXin tungsten carbide slitting knives, manufacturers can achieve:
- Higher precision
- Longer tool life
- Lower production costs
- Superior carton quality
